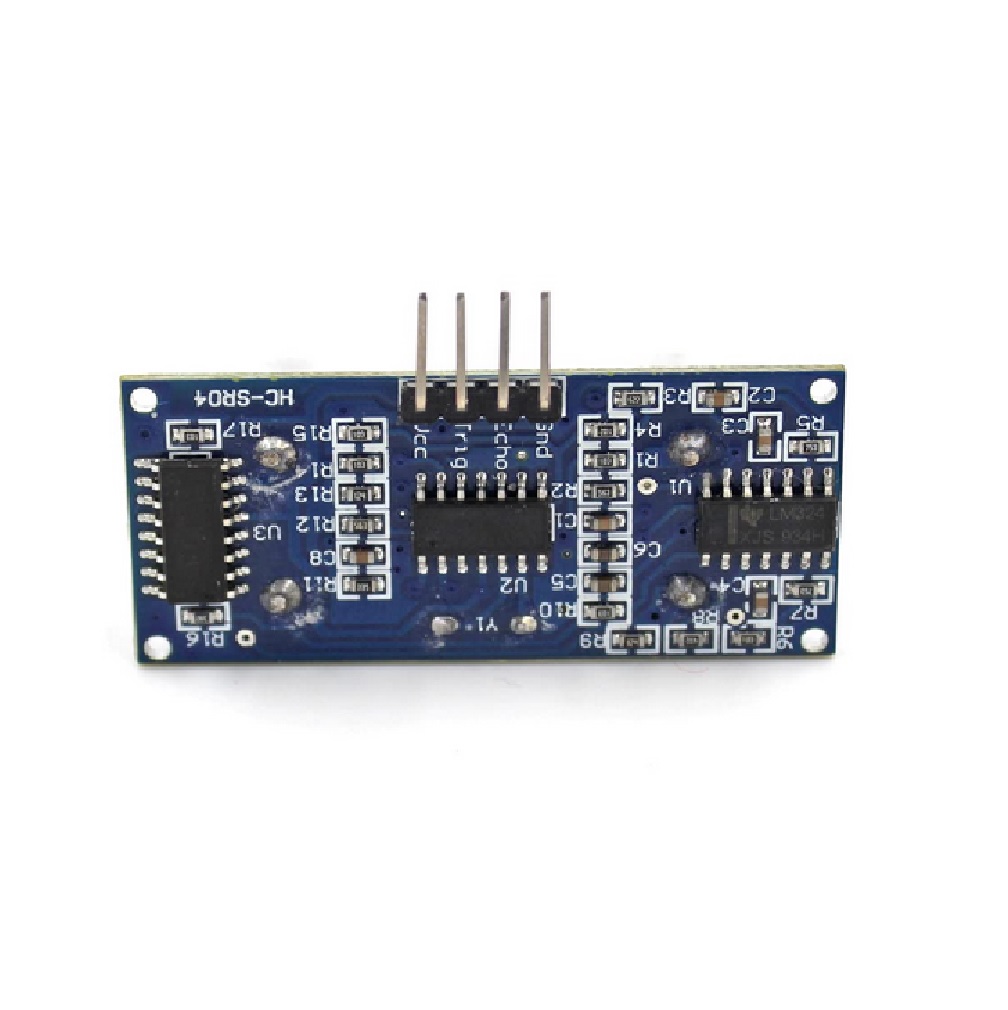

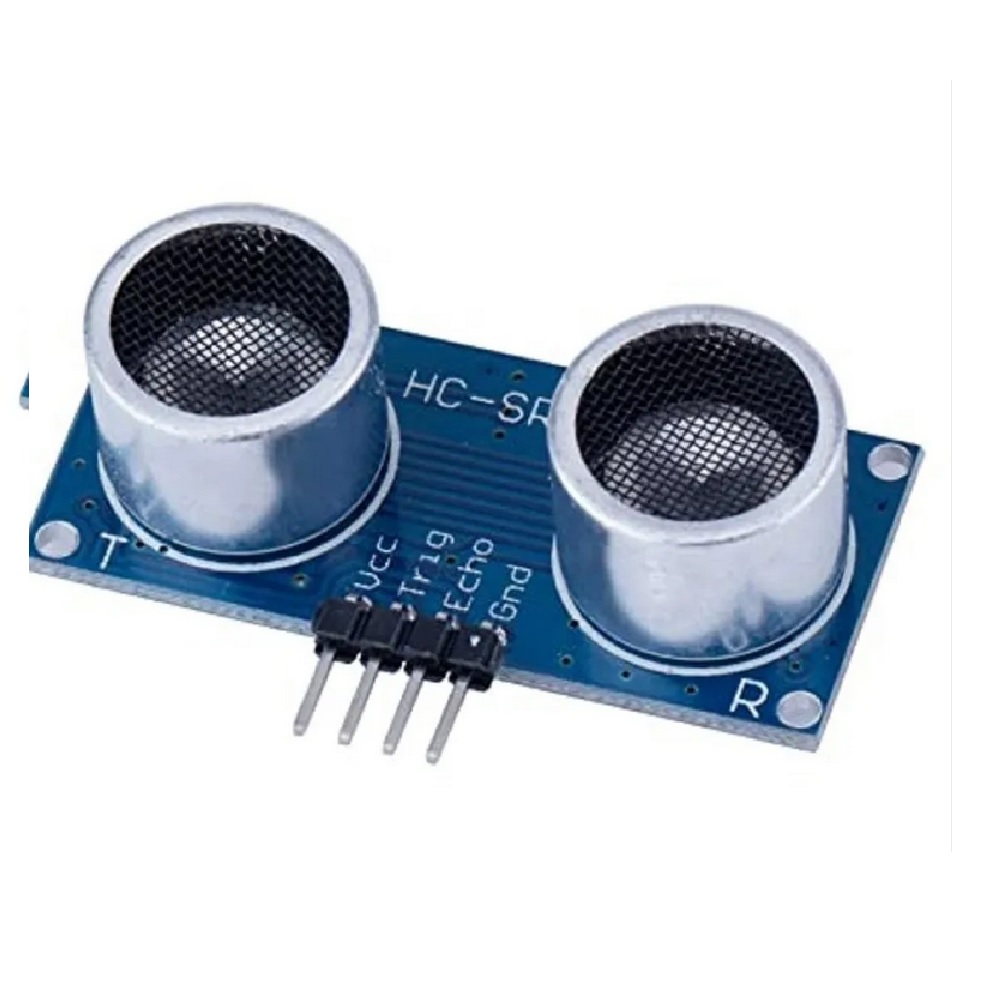

3.3-5 V Ultrasonic Sensor HC-SR04 Module For Distance Measurement

Brand: Spectracore
Offer Price
Rs 61
MRP
Rs 249

76% Off

Sensor Type: Ultrasonic Output: Digital Sensor Voltage: 5VDC Detection distance: 2cm-400cm (0.02M - 4.0M) Static current: < 2mA Level output: high-5V High precision: up to 0.3cm*Compatible for UNO, ARM, Raspberry Pi, NodeMCU, 8051, AVR, PIC

1
  • SKU: SCT-ULTRASONIC
  • Availability:100 In Stock

Description

Spectracore giving a ultrasonic sensor module can be used for measuring distance, object sensor, motion sensors etc. High sensitive module can be used with microcontroller to integrate with motion circuits to make robotic projects and other distance, position & motion sensitive products. The module sends eight 40Khz square wave pulses and automatically detects whether it receives the returning signal. If there is a signal returning, a high level pulse is sent on the echo pin. The length of this pulse is the time it took the signal from first triggering to the return echo
