Description
Pixhawk comes with an advanced 32-bit CortexM4 ARM high-performance processor, can run RTOS NuttX real-time operating system, Integrated backup power supply, and failure backup controller, the main controller can be safely switched to backup control, It Provides redundant power input and fault transfer function and Multi tone buzzer interface, Micro SD to record flight data
Description
Its Pixhawk Flight Controller Kit for Drone is a high-quality product with a 32-bit processor; This kit contains a battery, buzzer, F2F Jumper wire, a Card reader, and a 4 GB SD Card.
Processor: 32-bit 2M flash memory STM32F427 Cortex M4, with hardware floating point
Real-time operation system PWM/ Servo Output, Bus interface(UART, I2C, SPI, CAN), Integrated backup power and lose efficacy controller, central controller loss.
After-service: If you have any concerns about the Pixhawk PX4 2.4.8 Flight Controller.
Specifications:
- 32-bit Pixhawk PX4 Autopilot Open Code Flight Controller V2.4.8
- 2 bit 1.32 STM32F427 flash Cortex M4, with the floating-point hardware processing unit
- 2 main frequency: 256 K, RAM 168 MHZ
- 32-bit processor STM32F103 backup co
Sensors:
- L3GD20 3-axis 16-bit digital gyroscope
- LSM303D 14/3 Axis Accelerometer Magnetometer
- MPU6000 6-axis accelerometer/magnetometer
- MS5611 high-precision barometer
Interface:
- 5 UART 1 High Voltage compatible, 2 with hardware flow control
- 2 CAN
- DSM / DSM-X Spektrum compatible satellite receiver input
- SBUS input and output compatible
- PPM signal input
- RSSI (PWM or input voltage)
- I2C
- SPI
- 3.3 and 6.6 VADC inputs
- external US MICRO

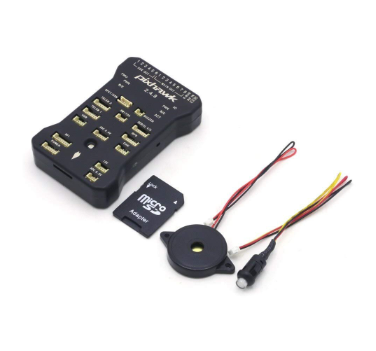

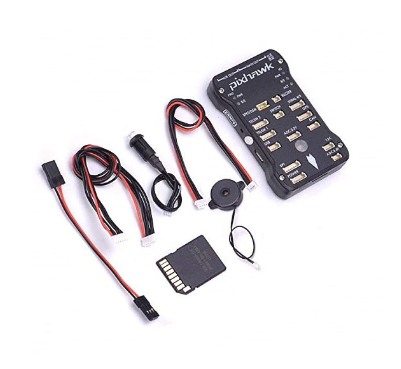

Package includes:
1 X 2.4.8 Pixhawk main control with shell
1 X Safety switch
1 X Buzzer
1 X Memory Card
Connection Wire
